September 15, 2016

A new paper published in the Journal of Soil Dynamics and Earthquake Engineering

VJ Tech in collaboration with the University of Surrey.

Contact Us for a copy of the paper (Open access version)

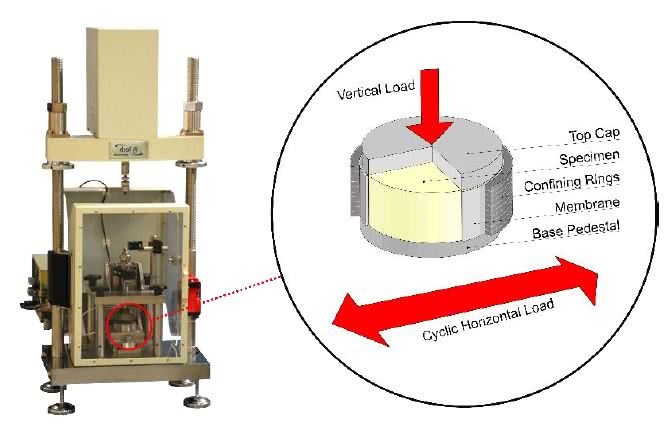

Offshore wind turbine - Dyna SS

Abstract: Offshore wind turbine (OWT) foundations are subjected to a combination of cyclic and dynamic loading arising from wind, wave, 1P (rotor frequency) and 2P/3P (blade passing frequency) loads. Under cyclic/dynamic loading, most soils change their characteristics. Cyclic behaviour (in terms of change of shear modulus change and accumulation of strain) of a typical silica sand (RedHill 110) was investigated by a series of cyclic simple shear tests. The effects of application of 50,000 cycles of shear loading having different shear strain amplitude, cyclic stress ratio (ratio of shear to vertical stress), and vertical stress were investigated. Test results were reported in terms of change in shear modulus against the number of loading cycles. The results correlated quite well with the observations from scaled model tests of different types of offshore wind turbine foundations and limited field observations. Specifically, the test results showed that; (a) Vertical and permanent strain (accumulated strain) is proportional to shear strain amplitude but inversely proportional to the vertical stress and relative density; (b) Shear modulus increases rapidly in the initial cycles of loading and then the rate of increase diminishes and the shear modulus remains below an asymptote. Discussion is carried out on the use of these results for long term performance prediction of OWT foundations.
